THE UNIVERSAL FOR COST SAVING IRRIGATION

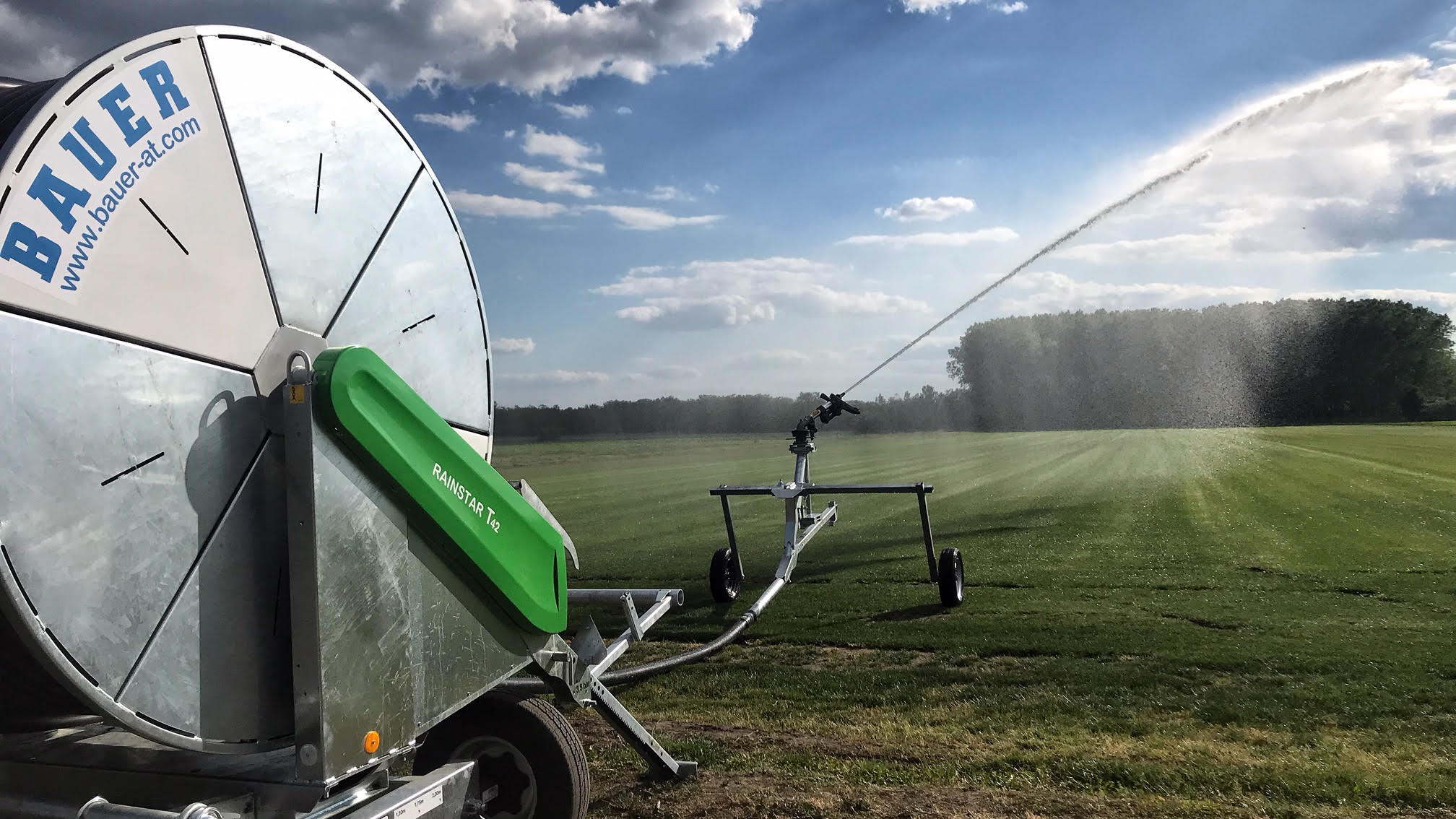

RAINSTAR T

The RAINSTAR T irri­gates reli­ably and cost-effec­tive­ly and can be oper­at­ed in a few simple steps. Thanks to its inno­v­a­tive modular design and the numer­ous acces­sories, the RAINSTAR T easily adopts to dif­fer­ent field sizes and vari­able appli­ca­tions. The inge­nious TVR radial full-flow turbine is a power pack and energy saver in one. The reg­u­la­tion of the turbine is con­trolled elec­tron­i­cal­ly by an irri­ga­tion com­put­er. Extreme con­di­tions are no problem at all for the Rain­star T. It can be used in the classic way with a wheel cart and a wide range sprin­kler. Alter­na­tive­ly, it can also be equipped with a boom cart and spray nozzles. Digital tools make it fit for the future. In addi­tion, it is also absolute­ly eco­nom­i­cal. No doubt: The RAINSTAR T is indis­pens­able for modern irrigation.

THE PRODUCT OF DECADES OF EXPERIENCE IN PRACTICE

Inno­v­a­tive modular design

  • Cost effi­cient and energy-saving irrigation
  • Com­fort­able and easy handling
  • Oper­a­tional safety even under the most extreme conditions

These and numer­ous other fea­tures is what dis­tin­guish­es this RAINSTAR generation.

No matter which field size or form, the inno­v­a­tive modular design of the RAINSTAR T easily adopts to every con­di­tion and offers tailor made equip­ment for every irri­ga­tion process. The par­tic­u­lar­ly attrac­tive price-per­for­mance ratio guar­an­tees in the first place the cost effec­tive­ness of your investment.

Our strengths
Drive
Combi wheel cart
Con­trols
Our strengths
1273_530144455b0b416e121c82ceaa7c4bdb
In the closer vicinity

Gal­va­nized

All steel parts of our Rain­stars are hot dip gal­va­nized. This means optimal cor­ro­sion pro­tec­tion for our machines, which is reflect­ed in the stable value and long lifes­pan of our products.

The fact that gal­va­niz­ing takes place in plants near our head­quar­ter in Voits­berg proves that we also focus on sus­tain­abil­i­ty in this regard.

1274_530144455b0b416e121c82ceaa7c4bdb
Inhouse-Pro­duc­tion

Home­made PE-pipe

special mixture of gran­u­lates, BAUER can guar­an­tee the highest and con­stant quality for a long lifes­pan at highest loads

Due to the inde­pen­dence and flex­i­bil­i­ty of our own pro­duc­tion, it is pos­si­ble to adjust the wall-thick­ness of every single PE-pipe in order to achieve low pres­sure loss and to save energy.

.

Processed with Snapseed.
FIRMLY ANCHORED TO THE GROUND

Robust machine supports

An impor­tant factor for suc­cess­ful irri­ga­tion is that the hose-reel irri­ga­tor is anchored firmly to the ground. Thanks to an extreme­ly flat angle for the machine sup­ports, the power is direct­ly passed into the centre of the machine and is there­fore opti­mal­ly dis­trib­uted. Hydraulic machine sup­ports are also avail­able as an option for all models of the RAINSTAR T series.

Kettenantrieb T
Main­te­nance-free oper­a­tion and long lifespan

Exact chain drive

The power trans­mis­sion for the PE pipe retrac­tion over a large dimen­sioned pipe reel is achieved with high quality chain and precise, laser-cut chain ele­ments. Due to the large diam­e­ter of the sprock­et and many sin­gu­lar chain links, the retrac­tion power is spread opti­mal­ly over a large area. By using coated, high-per­for­mance chains, a main­te­nance-free oper­a­tion and a long lifes­pan are guar­an­teed even with high retrac­tion power.

beide
Gentle guid­ance into the right position

Closed reel core

The first layer of the PE pipe is the layer exposed to the highest retrac­tion forces and there­fore it is impor­tant that no edges or small sup­port­ing points damage the PE pipe and even­tu­al­ly reduce its lifes­pan. To prevent such wear, each reel core of the RAINSTAR drum is com­plete­ly closed and equipped with a special pipe guard (RAINSTAR T51, T61).

Our RAINSTAR series T32 and T42 is well equipped with a deflec­tor plate. Thus the first layer of the PE pipe sits on the drum evenly and without dis­tor­tion. The pipe is gently guided into the right posi­tion for each layer.

Wickeleinrichtung
PRECISELY DRIVEN HELICALLY GROOVED SPINDLE

Level-wind

A precise level-wind system is essen­tial for a trouble-free oper­a­tion. The BAUER level-wind works gently and nearly main­te­nance-free through a double guided winding mech­a­nism and a pre­cise­ly driven heli­cal­ly grooved spindle. Espe­cial­ly at high retrac­tion forces and angular PE-pipe retrac­tion, it is impor­tant that the guide rails are sup­port­ed twice in order to absorb the forces and guide the PE-pipe pre­cise­ly in the right direction.

This results in a longer lifes­pan of the PE-pipe and trouble free operation

Drive
Turbine TVR60_gold
FOR MODELS T51 AND T61

Radial full-flow turbine TVR20

The radial full-flow economy turbine TVR 20 with the unique vario nozzle is a power pack and energy saver in one. No matter if small or water saving pre­cip­i­ta­tion rates or high amounts of water need to be dealt with — the TVR 20 turbine con­vinces with a high degree of effi­cien­cy and low pres­sure losses over the whole range of power.

Even under par­tic­u­lar­ly dif­fi­cult oper­at­ing con­di­tions, the turbine still has reserves for oper­a­tional safety, result­ing in enor­mous cost savings and minimum pres­sure losses in normal operation.

Maximum use of output is achieved by direct flow from the Vario nozzle onto the impeller. At maximum and minimum nozzle set­tings, the full stream flows over the turbine’s impeller. This way a high effi­cien­cy can be achieved with every flow rate with a low loss of pressure.

Pro­duc­tion and testing

Highest pre­ci­sion during assem­bly for maximum effi­cien­cy in oper­a­tion. Every single part of the high-tech turbine is pro­duced in-house. After the assem­bly each turbine is indi­vid­u­al­ly checked at an ultra-modern, fully auto­mat­ic test bench regard­ing its per­for­mance and quality before the RAINSTAR assem­bly continues.

TVR18
FOR MODELS T32 AND T42

Turbine TVR 18-gear-combination

Turbine with optimal per­for­mance and improved degree of effi­cien­cy — there­fore reduced energy costs. In com­bi­na­tion with the 4‑speed gear for optimal trans­mis­sion at every retrac­tion speed as well as comfort control and precise crank. Devel­oped and man­u­fac­tured by BAUER with usual care and quality.

Bauer_4Gang_Getriebe
Chang­ing the gears in a com­fort­able way

BAUER 4 speed gearbox

The con­cen­trat­ed power of the turbine is trans­mit­ted without loss over a V‑belt or direct­ly to the robust BAUER 4‑speed gearbox. 4 dif­fer­ent trans­mis­sion gear ratios ensure that the turbine oper­ates at cost saving maximum effi­cien­cy and thus it is pos­si­ble to reduce costs.

  • The control with precise shift­ing gate and display for enables chang­ing the gears in a com­fort­able way.
  • The safety lock of the clutch lever pre­vents a change of gear with engaged drive in order to prevent pos­si­ble misuse of untrained per­son­nel.  The aerated drum brake is placed direct­ly on the drive & ensures highest secu­ri­ty during road transport.
  • The brake adapts over dif­fer­ent spring loads auto­mat­i­cal­ly to the dif­fer­ent oper­at­ing con­di­tions and improp­er oper­a­tion is excluded.
  • The result is a long service life, high oper­a­tional reli­a­bil­i­ty and con­sis­tent quality.

Gentle to the drops

Combi wheel cart
Bauer_Auslegerstativ_Österreich_Rollrasen2
Bauer_Auslegerstativ_Österreich_Rollrasen
Gentle to the drops

Combi wheel cart

The combi wheel cart impress­es with its infi­nite­ly adjustable track width as well as the sym­met­ric and asym­met­ric PE pipe retrac­tion. The high over­head clear­ance pre­vents damages even with high crops. Large dimen­sioned tires guar­an­tee a safe oper­a­tion, even in rough terrain or with dif­fi­cult crops.

Bauer_Auslegerstativ_Österreich_Rollrasen2
Bauer_Auslegerstativ_Österreich_Rollrasen
Gentle to the drops

Combi wheel cart

The combi wheel cart impress­es with its infi­nite­ly adjustable track width as well as the sym­met­ric and asym­met­ric PE pipe retrac­tion. The high over­head clear­ance pre­vents damages even with high crops. Large dimen­sioned tires guar­an­tee a safe oper­a­tion, even in rough terrain or with dif­fi­cult crops.

The com­plete package

Con­stant angle of the water jet

Auto­mat­ic levelling

Auto­mat­ic cart lift

Espe­cial­ly in the final phase of the irri­ga­tion or on uneven terrain, the auto­mat­ic tilt com­pen­sa­tion cares for a con­sis­tent posi­tion of the sprin­kler. The angle of the water jet of the sprin­kler remains unchanged and pro­tects the crops from damages by water.

The combi-cart wheel is being lifted and locked auto­mat­i­cal­ly via the PE pipe retrac­tion and the special kine­mat­ics at the end of the irri­ga­tion process. Due to the special con­struc­tion of the RAINSTAR it is not nec­es­sary to take any pre­cau­tions for the trans­port — the band brake on the gear fixes the pipe reel and the wheel cart, auto­mat­ic and absolute­ly safe.

Boom Cart AS 32

Boom AS26 or AS32

Spray booms apply a par­tic­u­lar­ly fine mist, equally pro­tect­ing the crop and soil struc­ture. Already a low con­nec­tion pres­sure is enough for oper­at­ing a boom. This ensures sus­tain­able use of water and energy resources.

For detailed infor­ma­tion see chapter booms

Con­trols
Bauer Ecostar_6000_Handy

Rain­star controls

BAUER’s proven and robust control units are built for being used under the most extreme con­di­tions. They impress with their simple user inter­face and easy oper­a­tion. All basic func­tions for auto­mat­ic oper­a­tion are inte­grat­ed in all control boxes. Thanks to a wide range of acces­sories further fea­tures can be retrofitted.

The CAREFREE package

Exact length measurement

Regular retrac­tion speed

Con­tact­less

Wear-free

Trouble free

Sus­tain­abil­i­ty at the click of one button

Inno­va­tion on a high-tech level

Simple oper­a­tion at the click of one button is an impor­tant factor in the devel­op­ment of new RAINSTAR con­trols. Through full-time mon­i­tor­ing of chose set-point and actual value of the retrac­tion speed, the crops are pre­cise­ly irri­gat­ed. Pro­gram­ming of pre- and post irri­ga­tion can also very easily be done at the click of one button. Our con­trols work sus­tain­ably with a solar panel and a 12 Volt battery to ensure a suf­fi­cient power supply. Through the arrange­ment of 4 magnets there is a per­ma­nent mea­sure­ment even at low retrac­tion speed in order to assure precise reg­u­la­tion of the precipitation.

The inte­grat­ed shut-off sensor is oper­a­tional­ly reli­able, pro­tect­ed against acci­den­tal oper­a­tion, mounted under the drive cover and is dis­en­gaged mechan­i­cal­ly at the end of the strip.

Rainstar_13
Modern, precise and SMS function

Ecostar 6000

Latest irri­ga­tion elec­tron­ics for precise control of pre­cip­i­ta­tion rates, as well as control and mon­i­tor­ing via SMS function.

  • Pow­er­ful irri­ga­tion elec­tron­ics with 4.3 „Full LED” Touch-Display
  • Program pre­s­e­lec­tion of 12 dif­fer­ent programs
  • Record­ing of water con­sump­tion on dif­fer­ent levels
  • Switch­ing of oper­a­tion / pro­gram­ming of retrac­tion speed to pre­cip­i­ta­tion rate
  • Signal for user if end of PE-pipe is reached and for oper­a­tion of short dis­tance sprinkler
  • Record and if required read out the last oper­at­ing steps for error analysis
  • Auto­mat­ic func­tion­al analy­sis of all com­po­nents and sensors
  • Two solar panels and a 12 volt battery care for suf­fi­cient power supply
Rainstar_T61_ALS_Salat_AT-11
The small one with the big advantages

Ecostar 4300

  • Easy oper­a­tion at the click of one button
  • 4‑line display
  • Irri­ga­tion status indication
  • Per­ma­nent set-actual speed comparison
  • Solar panel + 12V battery
  • Oper­a­tion-hour counter
  • Real-time clock-start time indication
  • Vari­able irri­ga­tion speed zones
  • Pre­cip­i­ta­tion indicator
2_Montage_SmartRain_Pivot_Rainstar

Smar­tRain

Simple mon­i­tor­ing and control of dif­fer­ent irri­ga­tion machines via App direct­ly from the smart­phone or the office on the PC.

all about SmartRain

Rain­star T

Per­for­mance overview

T32
T42
T51
T61
T32

Rain­star
Model
Type PE-Pipe
Ø mm
PE-Pipe
length m
Stripe width
m
Con­sum­tion
m³/h
Nozzle sizes
mm
Con­nec­tion press
bar
weight in kg
with Wasser
weight in kg
without Wasser
T32 65 — 270 65 270 53 — 68 14 — 35 14,0 — 22,0 3,5 — 11,0 2.060 1.407
T32 65 — 320 65 320 53 — 68 14 — 35 14,0 — 22,0 3,5 — 11,0 2.227 1.452
T32 65 — 350 65 350 53 — 67 14 — 31 14,0 — 20,0 3,5 — 11,0 2.325 1.479
T32 75 — 250 75 250 53 — 76  14 — 49 14,0 — 26,0 3,5 — 11,0 2.269 1.460
T32 75 — 280 75 280 53 — 76 14 — 49 14,0 — 260 3,5 — 11,0 2.401 1.496
T32 75 — 300 75 300 53 — 75 14 — 44 14,0 — 24,0 3,5 — 11,0 2.489 1.520
T32 75 — 330 75 330 53 — 75  14 — 44 14,0 — 22,0 3,5 — 11,0 2.622 1.555
T32 85 — 220 85 220 55 — 87 17 — 64 16,0 — 28,0 3,5 — 11,0 2.412 1.538
T42

Rain­star
Model
Type PE-Pipe
Ø mm
PE-Pipe
length m
Stripe width
m
Con­sum­tion
m³/h
Nozzle sizes
mm
Con­nec­tion press
bar
weight in kg
with Wasser
weight in kg
without Wasser
T42 75 — 350 75 350 53 — 75 14 — 39 14,0 — 22,0 3,5 — 11,0 2.781 1.650
T42 85 — 270 85 270 53 — 83 14 — 60 14,0 — 28,0 3,5 — 11,0 2.767 1.672
T42 85 — 300 85 300 53 — 83  14 — 60 14,0 — 28,0 3,5 — 11,0 2.937 1.720
T42 85 — 320 85 320 53 — 83  14 — 55 14,0 — 26,0 3,5 — 11,0 3.051 1.752
T42 90 — 260 90 260 55 — 90  17 — 73 16,0 — 30,0 3,5 — 11,0 2.889 1.718
T32 90 — 280 90 280 55 — 88  17 — 40  16,0 — 30,0 3,5 — 11,0 3.016 1.775
T42 90 — 300 90 300 55 — 86  17 — 69 16,0 — 30,0 3,5 — 11,0 3.144 1.792
T51

Rain­star
Model
Type PE-Pipe
Ø mm
PE-Pipe
length m
Stripe width
m
Con­sum­tion
m³/h
Nozzle sizes
mm
Con­nec­tion press
bar
weight in kg
with Wasser
weight in kg
without Wasser
T51 75 — 400 75 400 53 — 71 14 — 33  14,0 — 20,0 3,5 — 11,0 3.577 2.309
T51 75 — 420 75 420 53 — 71  14 — 33  14,0 — 20,0 3,5 — 11,0 3.666 2.349
T51 85 — 350 85 350 53 — 83  14 — 55 14,0 — 26,0 3,5 — 11,0 3.796 2.325
T51 85 — 370 85 370 53 — 80 14 — 52 14,0 — 26,0 3,5 — 11,0 3.910 2.378
T51 90 — 330 90 330 55 — 86 17 — 69 16,0 — 30,0 3,5 — 11,0 3.909 2.334
T51 90 — 350 90 350 55 — 87 17 — 64 16,0 — 28,0 3,5 — 110 4.037 2.389
T61

Rain­star
Model
Type PE-Pipe
Ø mm
PE-Pipe
length m
Stripe width
m
Con­sum­tion
m³/h
Nozzle sizes
mm
Con­nec­tion press
bar
weight in kg
with Wasser
weight in kg
without Wasser
T61 85 — 400 85 400 53 76 14 — 49 14,0 — 260 3,5 — 11,0 4.040 2.443
T61 85 — 450 85 450 53 — 76 14 — 44 14,0 — 24,0 3,5 11,0 4.324 2.592
T61 90 — 370 90 370 55 — 83 17 — 60 16,0 — 28,0 3,5 — 11,0 4.124 2.449
T61 90 — 390 90 390 55 — 83 17 — 55 16,0 — 26,0 3,5 — 11,0 4.251 2.512
T61 90 — 420 90 420 55 — 83 17 — 55 16,0 — 26,0 3,5 ‑11,0 4.442 2.615
T61 90 — 450 90 450 55 — 80 17 — 52 16,0 — 26,0 3,5 — 11,0 4.633 2.714
T61 100 — 300 100 300 55 — 90 17 — 73 16,0 — 30,0 3,5 — 11,0 4.126 2.462
T61 100 — 330 100 330 55 — 90 17 — 73 160 — 30,0 3,5 — 11,0 4.362 2.531
T61 100 — 350 100 350 55 — 86  17 — 69 16,0 — 30,0 3,5 — 11,0 4.519 2.577
