Stirred, not shaken.

Slurry Mixer MEX, MTX & MTXH

Well-agi­tat­ed slurry guar­an­tees even nutri­ent dis­tri­b­u­tion — which means optimal growth and increased yield. Our slurry mixers of the MTX / MEX series are per­fect­ly suited for homogeni­sa­tion in agri­cul­ture, biogas plants, sewage treat­ment plants & industry.

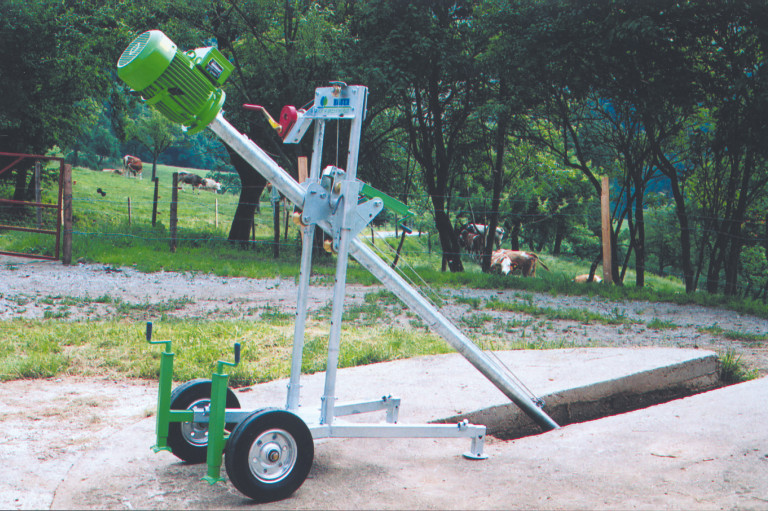

Elektromixer in Grube
Mixer trolley

ELECTRIC MIXER MEX 305 / MEX 450G

Mixer trolley with solid rubber tyres and lifting device. Tele­scop­ic support legs and two support spin­dles provide sta­bil­i­ty to the mixer during oper­a­tion. With retract­ed support legs and wheel axles, the mixer can also pass through narrow doors and open­ings (860 mm). By means of the safety rope winch, the adjust­ing spindle and a guide console with 2 pairs of rollers, easy posi­tion­ing of the mixer shaft is ensured for all mixing applications.

Tech­ni­cal spec­i­fi­ca­tions elec­tric mixer MEX

Model Mixer shaft length in m Pit volume m3 Mixer blade Ø mm No. of mixer blades Drive power kW/PS
MEX 305 3,5 / 4,5 170 305 1450 7,5 / 10
MEX 450 G 3,5 / 4,5 230 450 610 7,5 / 10
MEX 450 G 3,5 / 4,5 280 450 610 9,2 / 12,5
TRACTOR MIXER

MTX, MTXH & MTXH‑L

Tractor Mixer MTX
Tractor Mixer MTXH
Tractor Mixer MTXH‑L
Tractor Mixer MTX
sMontage-Traktormixer_frei
PIT TRACTOR MIXER, MECHANICAL

Mixer MTX

Mixer shaft with sturdy shaft, mul­ti­ple bear­ings and running in an oil bath, stir­ring blade with guard, 13⁄8″ PTO shaft con­nec­tion with pro­tec­tion pot, uni­ver­sal lifting frame for attach­ment to the tractor hydraulics, with swivel device for inser­tion into small pit open­ings, rope winch as an option. Mixer shaft, stir­ring blade and lifting frame hot-dip gal­vanised. Minimum pit opening 80 x 80 cm.

Tech­ni­cal spec­i­fi­ca­tions tractor mixer MTX

Model Mixer shaft length in m Pit volume m³ Mixer blade Ø mm No. of mixer blades Type of blade Drive power kw/PS
MTX 600 4 / 5  1.000 n/ 1.200 600 3 saugend / drückend
Tractor Mixer MTXH
1Traktormixer_04_frei
Tur­bomix MTXH

Advan­tages

  • Hydrauli­cal­ly swiv­el­ling mixer shaft
  • Addi­tion­al swiv­el­ling aid for closed pits (option)
  • High load capac­i­ty despite of low dead weight
  • Sturdy, extreme­ly strong lifting frame
  • Con­ve­nient mixer shaft locking device
Traktormixer_03_frei
Tur­bomix MTXH

Mixer blade

  • 3 blade mixer with cutting edges for excel­lent mixing performance
  • Effi­cient cutting of long-fibre ingredients
  • Special guard ring design for optimal flow
3Traktormixer_04_frei
Tur­bomix MTXH

Mixer shaft & Lifting frame

  • Gen­er­ous­ly dimen­sioned mixer shaft for extreme conditions
  • Mixer shaft with mul­ti­ple bearing
  • Smooth running at full load
  • Robust agi­ta­tor for the tough­est applications
  • Strong hydraulic cylin­ders for lifting and low­er­ing the lifting frame
  • Compact design of three-point hitch
  • Mount­ing cat­e­go­ry II and III
  • High sta­bil­i­ty due to rein­forced profiles
  • Low dead weight
  • Opti­mised kine­mat­ic swivel range

Tech­ni­cal spec­i­fi­ca­tions tractor mixer MTXH

Model Mixer shaft length in m Pit volume m³ Mixer blade Ø mm No. of mixer blades No. of mixer blades Drive power with 540 min‑1 Drive power with 50 min‑1 Drive power with 1.000 min‑1
MTXH3 600 4 / 5 / 6 1.300–1.700 600 3 saugend / drückend
Tractor Mixer MTXH‑L
IMG_2506_ret
Low power requirement

Lengths of up to 10 metres

With its pow­er­ful stir­ring blades, the MTXH L sets the con­tents of slurry lagoons of up to 6,000 m³ in motion and homogenis­es them in no time — without requir­ing much power.

No matter whether it is thin liquid slurry with solids, lumps, sinking layers or thick float­ing layers: cutting edges on the stir­ring blades ensure effec­tive cutting of even long-fibre com­po­nents without requir­ing much power. Maximum mixing and thrust power is achieved with a rel­a­tive­ly low power requirement.

Traktormixer_03_frei
Tur­bomix

Mixer blade

  • 3 blade mixer with cutting edges for maximum performance
  • Effi­cient cutting of long-fibre ingredients
  • Opti­mised hydraulic design for high efficiency
  • Long service life due to wear-opti­mised cutting edges
Mixer Titel_IMG 2503
Tur­bomix MTHX‑L

Advan­tages

  • Low power require­ment with high stir­ring effect and thrust force
  • User-friend­ly, even in one-man operation
  • Sturdy, extreme­ly strong lifting frame
  • High load capac­i­ty despite of low dead weight
  • Optimal for appli­ca­tions with solids content
  • Avail­able in lengths from 7 to 10 metres
  • Special hydraulic design for optimal flow
  • Stable frame­work

Tech­ni­cal spec­i­fi­ca­tions tractor mixer MTXH‑L

Model Mixer shaft length m Pit volume m3 Mixer blade Ø mm No. of mixer blades Type of blade Drive power with 540 min‑1 Drive power with 750 min‑1 Drive power with 1.000 min‑1
MTXH‑L 7 / 8 / 9 / 10 bis zu 6.000 620 3 drück­end
