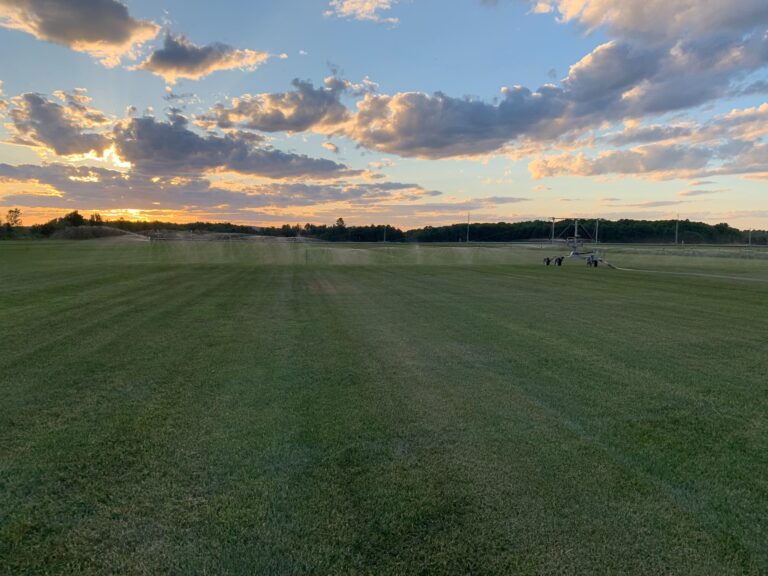

Bauer Beregnung Rainstar E + Auslegerstativ
Popular around the world

BAUER Booms

BAUER booms are very popular around the world. And with good reason, as they combine the mobility of the Rainstar with the irrigation quality of a Pivot.

Booms are a flexible low-pressure system that – together with a Rainstar – can be used ideally on smaller areas on the one hand and produce an extremely even, fine precipitation on the other. This system is therefore perfect for crops that require particularly gentle irrigation.

easy handling

economical operation

comfortable transportation

Bauer Beregnung Auslegerstativ AS 16_ret
ECONOMICAL AND EFFECTIVE

Gentle rain

BAUER boom carts are made of high-quality steel and aluminium. Despite their lightweight construction, they are absolutely stable. Easy handling is a further big plus: In just a few minutes, a BAUER boom can be folded up and unfolded by one person. Irrigation with Bauer boom carts offers particularly fine and even precipitation. Furthermore they are extremely economical in terms of water and energy consumption.

They are also characterized by minimized evaporation losses and maximum wind resistance. What's more, our booms can easily be retrofitted to existing hard hose travellers.

Bauer Beregnung Auslegerstativ Rotator_1
Maximum protection of the plants

Irrigation in its finest form

0,8 bar of nozzle pressure is already enough for irrigation with a boom. Precipitation is particularly fine and gentle and protects plants and soil. Low sensitivity to wind is another welcome advantage. Fine droplets prevent soil compaction - topsoil and pore structure are preserved and the soil is treated with care. By distributing the water close to the ground, evaporation is reduced, increasing efficiency and having a positive effect on the overall cost efficiency of the machine.

Bauer Beregnung Auslegerstativ_AS50Transport1
Ready for transport in no time

Compact transport unit

While the smaller AS 16 and AS 26 boom carts are prepared manually for transport, the fold away elements of the larger booms AS 32 and AS 50 are loaded onto the Rainstar. A single operation easily opens or closes the boom in just a few minutes.

Easy change of irrigation position

Easy change of irrigation position

Bild 1 von 3
4 models from small to large

The right boom cart for every Rainstar

BAUER AS 16
BAUER AS 26
BAUER AS 32
BAUER AS 50
BAUER AS 50NEO
BAUER AS 16

BAUER AS 16

  • Boom with a constructional width of 16m
  • Maximum irrigation strip width 32m (with BAUER end nozzle block)
  • Boom arms easy to detach for transport
  • Mountable on RAINSTAR A3
Bauer Beregnung Auslegerstativ AS16
BAUER AS 26

BAUER AS 26

  • Boom with a constructional width of 26m
  • Maximum irrigation strip width 40 m (with BAUER end nozzle block)
  • Boom arms easy to detach for transport
  • Mountable on all RAINSTAR T models
Bauer Beregnung Auslegerstativ_AS26
BAUER AS 32

BAUER AS 32

  • Boom with a constructional width of 32m
  • Maximum irrigation strip width 50 m (with BAUER end nozzle block)
  • Boom foldaway with wind bracing - for simple and quick installation and dismounting
  • Mountable on all RAINSTAR T models as well as PRORAIN F30 and F40
Bauer Beregnung Auslegerstativ AS32
BAUER AS 50

BAUER AS 50

  • Boom with a constructional width of 50m
  • Maximum irrigation strip width 72 m (with BAUER end nozzle block)
  • Boom foldaway with wind bracing - for simple and quick installation and dismounting
  • Mountable on all RAINSTAR E11-E51 models as well as on RAINSTAR E55
Bauer Beregnung Rainstar E + Auslegerstativ

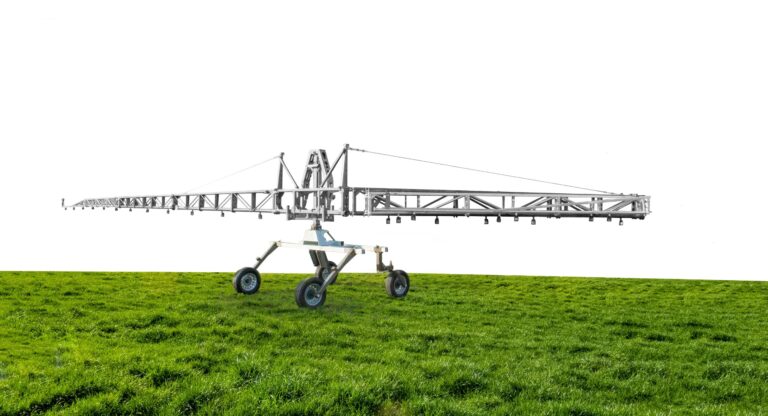

BAUER AS 50NEO
INFORMATION ON REQUEST

BAUER AS 50

  • Construction width: 50 m
  • Transport width: 3 m
  • Maximum irrigation strip width 72 m
  • Easy and quick to fold
  • Preparation for KPW end nozzle distributor
  • Can be mounted on all RAINSTAR E100 - E500 models as well as on RAINSTAR E55
Auslegerstativ AS50 NEO
