PT16000_4
BAUER self-pro­pelled tankers

BAUER PT

The poly tanker has a filling volume of 16,000 litres and it is hand­made in-house at ECKART Maschi­nen­bau GmbH. Thanks to many years of expe­ri­ence in the field of FRP, it is pos­si­ble to rely on highest quality. Fur­ther­more, we have equipped the tanker with H‑shaped anti-surge baffles to achieve stable driving behav­iour on head­lands or slopes. As stan­dard, the Xerion is equipped with a 9,000 l rotary piston pump from Vogel­sang. However, many cus­tomers want a 12,000 l pump which can be fitted easily. With the newly devel­oped shape, it is pos­si­ble to unfold up to 21 m of trail­ing shoe appli­ca­tor booms. Thanks to optimum match­ing of the CLAAS XERION and BAUER slurry tech­nol­o­gy, a filling time of less than 90 seconds can be achieved. This short filling time is only pos­si­ble thanks to our flow-opti­mised front unit with 10″ piping and a company-devel­oped accel­er­a­tor that pushes the slurry masses to the Vogel­sang pump. The accel­er­a­tor is oper­at­ed at 160 bar due to the optimal coor­di­na­tion of the oil quan­ti­ties. This reduces wear on the rotary piston pump, as it does not run in cavitation.

PT16000_31

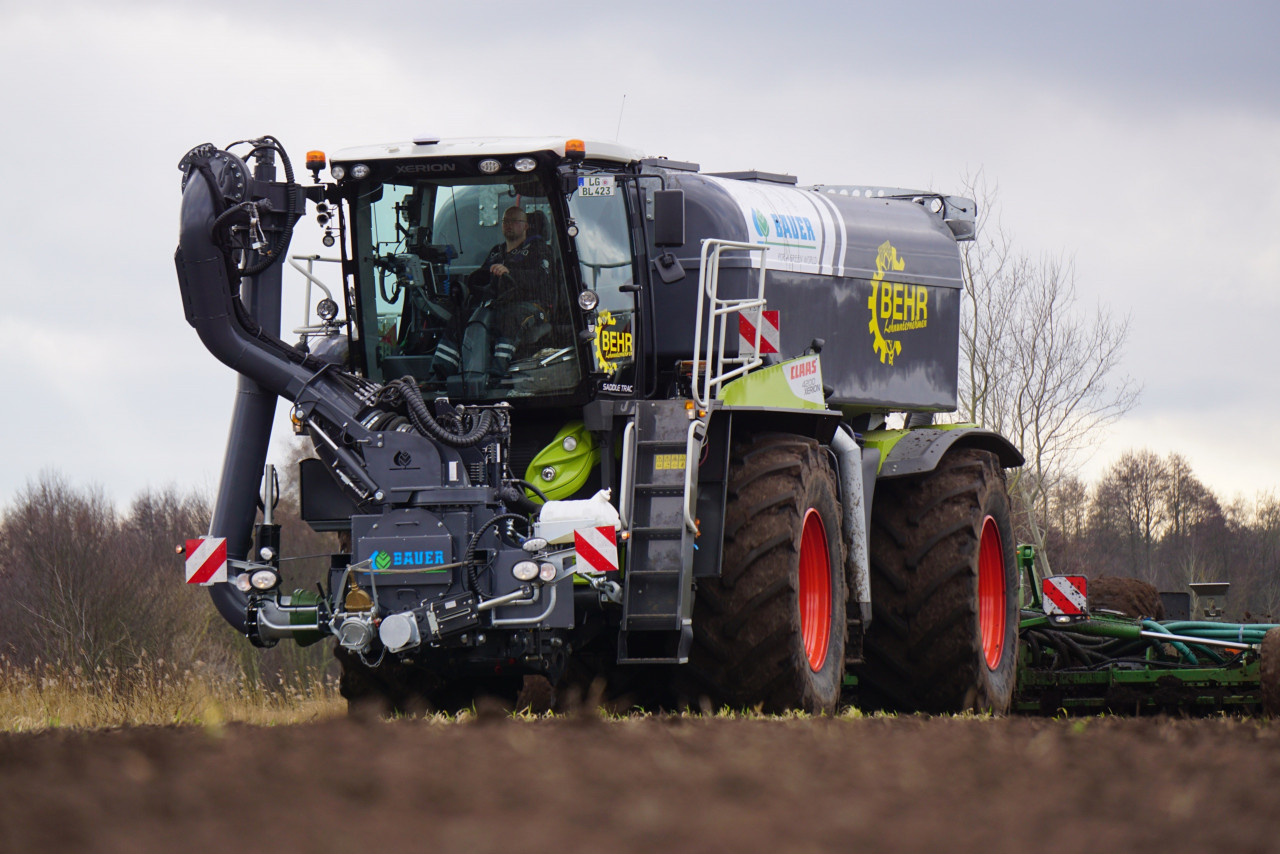

THE BAUER SELF-PROPELLED TANKER IN COOPERATION WITH CLAAS

BAUER self-pro­pelled tankers

To improve sta­bil­i­ty and weight dis­tri­b­u­tion, trans­verse and lon­gi­tu­di­nal anti-surge baffles have been installed. By mount­ing the tanker on the trac, high trac­tion as well as a better hp/kg ratio can be ensured. The front unit is equipped with a 10″ suction arm and can be swiv­elled by 160 degrees.

The POWER FILL system allows to fill the tanker within short­est time.

Bauer PT

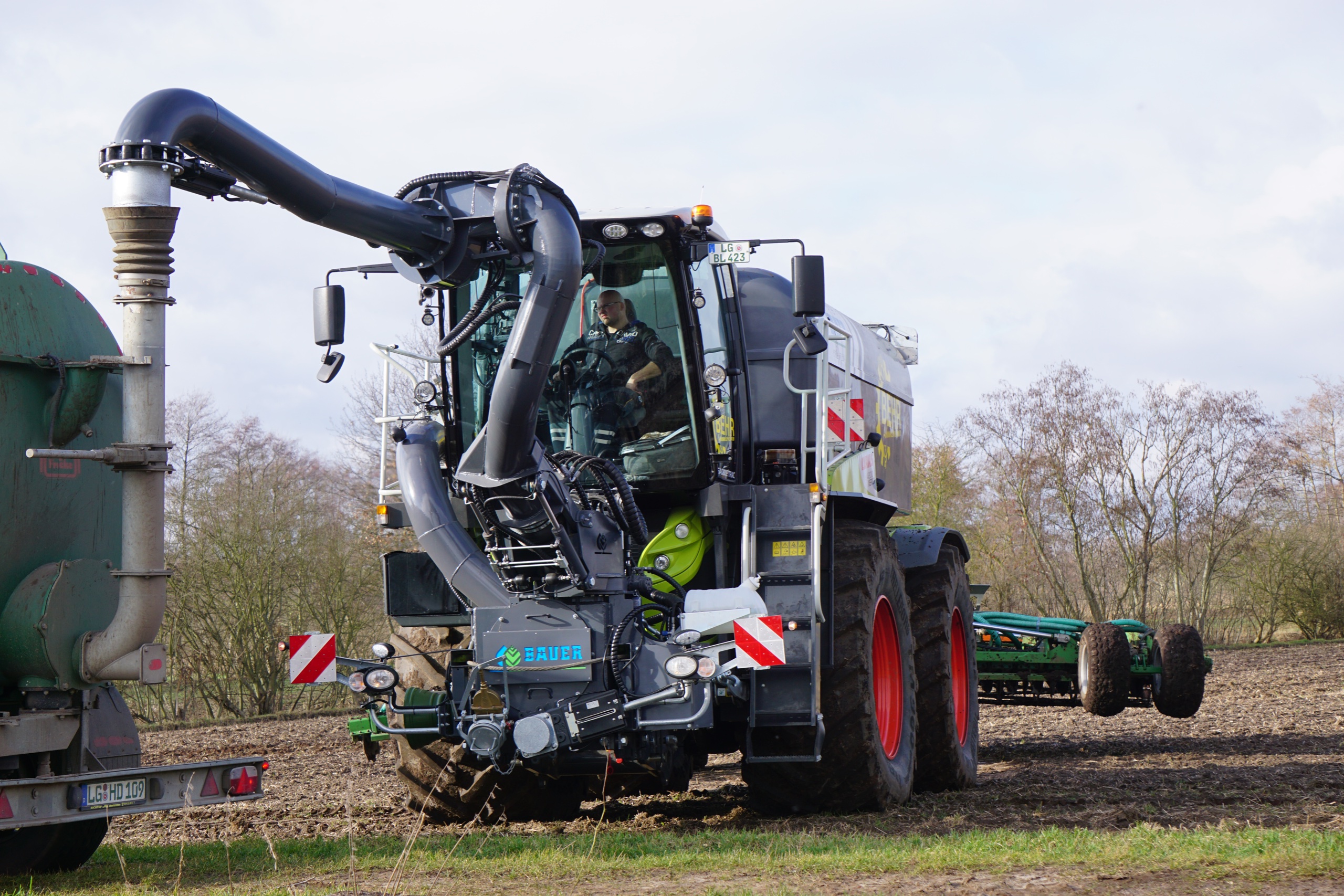

Front unit

To improve sta­bil­i­ty and weight dis­tri­b­u­tion, trans­verse and lon­gi­tu­di­nal anti-surge baffles have been installed. By mount­ing the tanker on the trac, high trac­tion as well as a better hp/kg ratio can be ensured. The front unit is equipped with a 10″ suction arm and can be swiv­elled by 160 degrees.

The POWER FILL system allows to fill the tanker within short­est time.
