Titelseite Rainstar A3
The A class

Bauer Rain­star A

The Rain­star A is the small­est of the Bauer Rain­star family. Nev­er­the­less, one should not under­es­ti­mate him. After all, it carries the Bauer DNA in all its com­po­nents. And it is certain that the Rain­star A is in no way infe­ri­or to the big ones in terms of quality, tech­nol­o­gy and accuracy.

Easy to use, pow­er­ful and tech­ni­cal­ly up to date — these are the char­ac­ter­is­tics of the Rain­stars A2 and A3. The pos­si­ble use cases are diverse: Whether on sports fields, golf courses, in parks, schools, garden centers or ceme­ter­ies, the Rain­star A always looks good.

What applies to the big ones also applies to the little ones: All steel parts of the Rain­stars A are hot-dip gal­va­nized in an immer­sion bath. They are there­fore pro­tect­ed from cor­ro­sion all around and can do their job with dignity. Year for year.

It is self-evident that the Rain­stars A series are also equipped with Bauer’s renowned PE pipe.

Stativ_Rainstar A2
The small­est

Rain­star A2

The Rain­star A2 is the baby among the Rain­stars: Small and handy it can easily be oper­at­ed or moved. A single person can easily and quickly bring the A2 to another loca­tion. Fur­ther­more the A2 is char­ac­ter­ized by an extra­or­di­nary price-per­for­mance ratio and highest irri­ga­tion efficiency.

Rainstar A2_3-Rad_Golfplatz1
Small but efficient

Rain­star A2

  • Flex­i­ble: The 2‑wheel chassis and the auto­mat­ic gun trolley lift ensure a quick and easy change of location
  • Precise: Also the small A2 is equipped with auto­mat­ic speed reg­u­la­tion and pipe lay­er­ing compensator.
  • Durable: Pipe reel and chassis are hot-dip galvanized
Drive Unit
Pre­ci­sion chain drive
Wheel cart
Drive Unit
Rain­star A2

Drive Unit

Even small machines need a pow­er­ful drive. In the Rain­star A2, this is ensured by a sophis­ti­cat­ed turbine/gear box com­bi­na­tion with the pow­er­ful Bauer TCN10 full-flow turbine spe­cial­ly designed for the A2. The speed is pre­cise­ly reg­u­lat­ed, and an exchange­able nozzle guar­an­tees excel­lent efficiency.

Antriebseinheit Rainstar A2 mit Turbine TCN10
Pre­ci­sion chain drive
Rain­star A2

Pre­ci­sion chain drive

The power trans­mis­sion is via a strong high-quality chain and precise laser cut toothed gear ele­ments. This opti­mised design offers extreme­ly low pres­sure loss and high effi­cien­cy power output

kettenantrieb
Wheel cart
Rain­star A2

Wheel cart

The A2 is equipped with a two-wheel cart and pre­pared for irri­ga­tion with a wide range sprin­kler. The cart track width can be easily adjust­ed. Thanks to the auto­mat­ic gun trolley lift the cart is auto­mat­i­cal­ly loaded at the end of irrigation.

Rainstar-A2_stativ

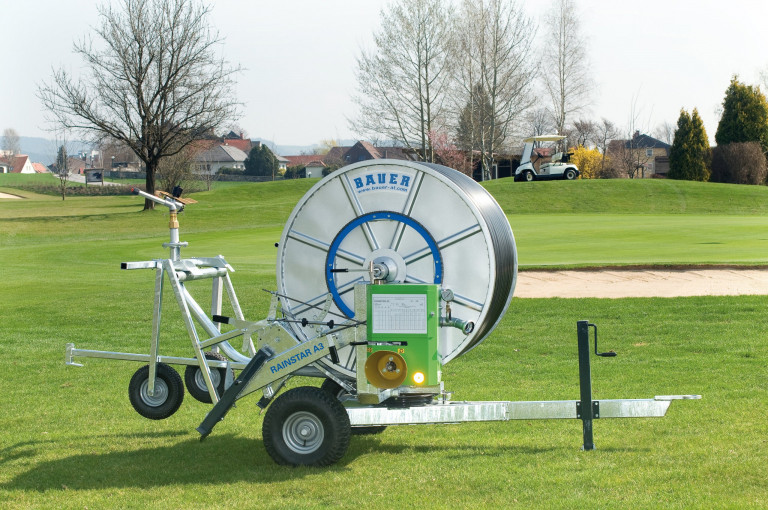

Rainstar A3_DSCN1700_ret
The bigger one

Rain­star A3

The RAINSTAR A3 is char­ac­ter­ized by an extra­or­di­nary price-per­for­mance ratio and maximum irri­ga­tion effi­cien­cy. The A3 chassis has a rotat­ing pipe reel that can easily be swiveled by one person into the desired working posi­tion. If required, it can also be equipped with a boom cart. What dis­tin­guish­es it from the smaller A2. The A3 is a bit proud of that.

PE-Rohr_Rainstar_A
Even easier to use

Rain­star A3

  • To swivel the RAINSTAR A reel to the required working posi­tion is simple and easily under­tak­en by one person.
  • Three speed ranges can be set by means of V‑belt transmission
  • The A3 can also be equipped with a boom cart AS 16 (more under boom carts).
Drive unit
Pre­ci­sion chain drive
Wheel cart
Drive unit
Antriebseinheit DG_RAINSTAR A3
Rain­star A3

Drive Unit

The compact drive unit, con­sist­ing of the BAUER full-flow turbine, the V‑belt trans­mis­sion and speed change gearbox, offers the A3 the optimum in economy and oper­at­ing effi­cien­cy. Power trans­mis­sion is ensured by a strong high-quality chain and precise laser cut toothed gear ele­ments. These com­po­nents are per­fect­ly matched to each other. The result: Minimum pres­sure losses and maximum performance.

Pre­ci­sion chain drive
Rain­star A3

Pre­ci­sion chain drive

The power trans­mis­sion is via a strong high-quality chain and precise laser cut toothed gear elements.

This opti­mised design offers extreme­ly low pres­sure loss and high effi­cien­cy power output

Rainstar_A3_Kettentrieb
Wheel cart
Rain­star A3

Wheel cart

Like the A2, also the A3 is equipped with a two-wheel cart and pre­pared for irri­ga­tion with a wide range sprin­kler. The cart track width can be easily adjust­ed. Thanks to the auto­mat­ic gun trolley lift the cart is auto­mat­i­cal­ly loaded at the end of irri­ga­tion. If nec­es­sary, the A3 can also be equipped with a boom cart.

Rainstar_A3_27
Image 1 of 3
Rain­star A

Spec­i­fi­ca­tion

Rain­star
Model
Type PE-Pipe
Ø mm
PE-Pipe
length m
Strip width
m
Con­sump­tion
m³/h
Nozzle sizes
mm
Con­nec­tion press
bar
weight in kg
with water
weight in kg
less water
A2 50 — 135 50 135 28 — 54 3,2 — 13 7 — 14 3,2 — 8 526 341
A2 55 — 120 55 120 30 — 58 4,0 — 16 8 — 16 3,2 — 8 546 351
A2 58 — 115 58 115 32 — 62 5,0 — 20 9 — 16 3,2 — 5 568 353
A3 55 — 170 55 170 38 — 57 7,5 — 18 10 — 16 4,0 — 8 792 515
A3 63 — 125 63 125 38 — 62 7,5 — 20 10 — 16 4,0 — 8 778 512
A3 63 — 150 63 150 38 — 62 7,5 — 20 10 — 16 4,0 — 8 855 537
